The QUARTZ-GOLD-5G router is a high speed dual port gigabit ethernet industrial router designed for transferring large amounts of data via the 5G NR cellular network. The QUARTZ-GOLD-5G’s fast data transfer capability reaches up to 2.4Gbps download and up to 900Mbps upload speed. It also has fall-back to 4G/LTE and 3G/UMTS communication, should 5G NR be unavailable. It is well suited for high speed mobile broadband applications, offering reliable, secure wireless connectivity.

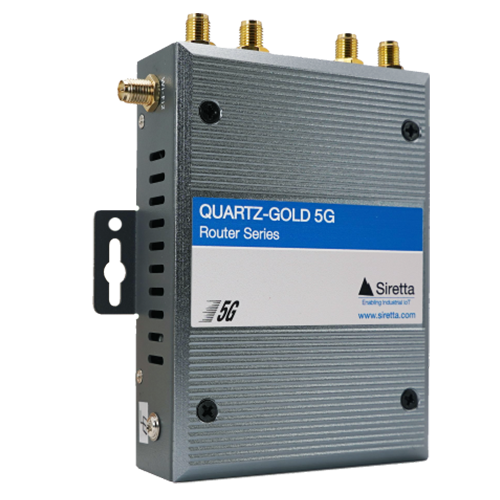

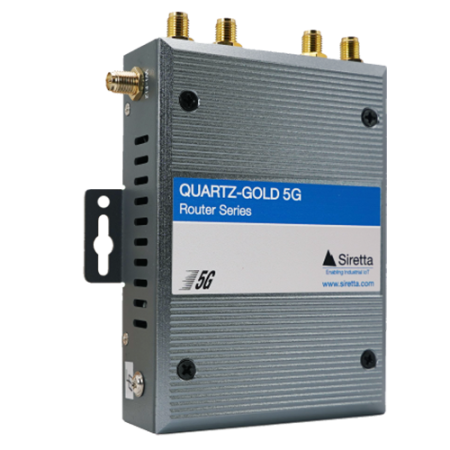

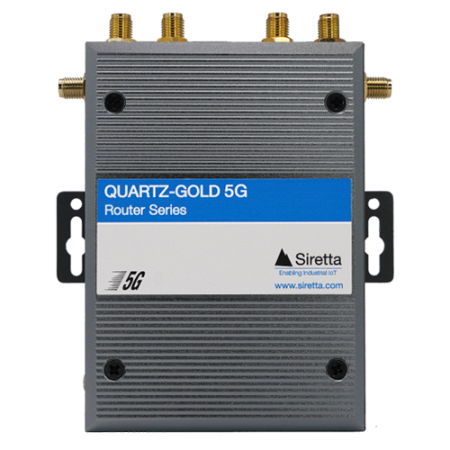

The QUARTZ-GOLD-5G router has a robust design, encased in a small sized metal enclosure, making it ideal for deployment in industrial embedded applications. The QUARTZ-GOLD-5G software supports a number of high end VPN security protocols allowing the router to be used in commercial as well as industrial applications securely and reliably.
The QUARTZ-GOLD-5G router meets many of the needs for management of remote systems and communication channels and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring, and many other IoT mobile broadband applications.
The QUARTZ-GOLD-5G router comes as standard with dual port gigabit ethernet capability and optional 2.4GHz and 5GHz Wi-Fi.
In addition the QUARTZ-GOLD-5G supports 1 x RS232 serial connectivity to connect remote equipment. The QUARTZ-GOLD-5G also allows you to interact directly to the cellular engine to automate notifications such as SMS alarm triggered alerts. It also allows your connected equipment to interrogate the connections status, signal strength and network parameters directly which can allow remote systems to run autonomously in the field.
- Global 5G NR (NSA & SA Modes) , 4G / LTE and 3G / UMTS bands
- High speed data downlink via LTE Cat 16 network
- High speed data uplink via LTE Cat 18 network
- 2.4 GHz & 5 GHz dual Wi-Fi support (Optional)
- Strong resistance to electromagnetic interference
- Built-in watch dog, multi-link detection
- Compact industrial design
- Excellent temperature endurance
- VPN: OpenVPN, PPTP, L2TP, GRE, IPSec
- 2 x GbE Local LAN (Router Mode)
- 1 x GbE Local LAN & 1 x GbE Remote WAN (Backup Mode)
Specifications
Mechanical Specifications
Operating temperature range: -30 to 75°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

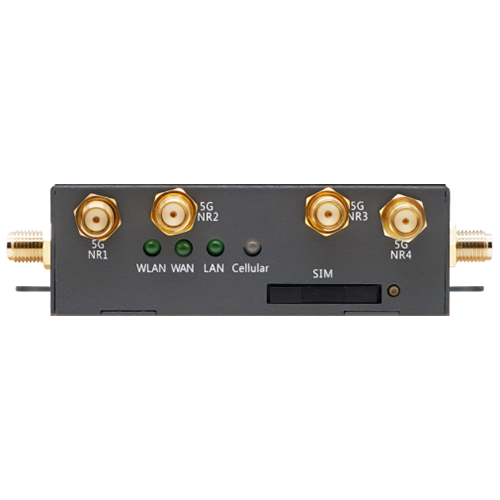

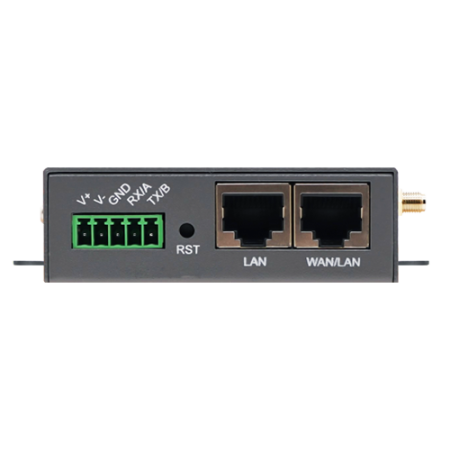

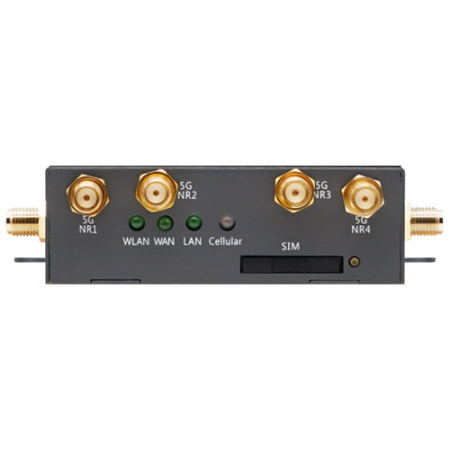

Physical Interfaces
2 x Gigabit RJ-45 Ethernet Interfaces
1 × Standard SIM/R-UIM interface
2 x RP-SMA (Male) Wi-Fi Interface (For Wi-Fi equipped Models)
4 × SMA (Female) Cellular interface
1 x Serial RS232
1 × DC Power Interface (7.5 to 32 V DC)
Power and Consumption
Idle: 600mA @ +12V DC
Communications: 850mA @ +12V DC
Certification
CE
UKCA
FCC (TBC)
RoHS
Features
Captive User Portal
Current Routing Table
Custom NTP Server Support
DDNS Support
Direct Modem Access
DMZ Support
HTTPS Support
ICMP Ping Support
Integrated TCP/IP Services
Internal logging and Remote Syslog Support
NAT Support
Network Bandwidth Throttling
Port Redirection Support
Port Triggering
Remote Access over HTTP/HTTPS
Static DHCP
Static Routing
WAN Backup
Wireless Network Survey
Wake On LAN Support
VPN Tunnel Support
GRE Tunnel
IPSec Tunnel
L2TPv3 Client
OpenVPN Client
PPTP/L2TP Client
