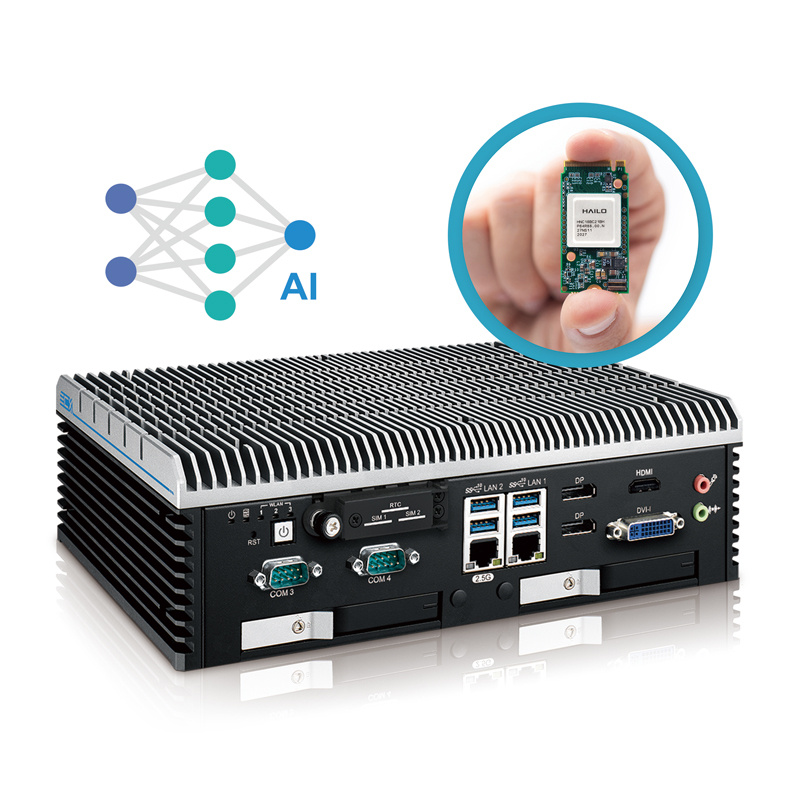

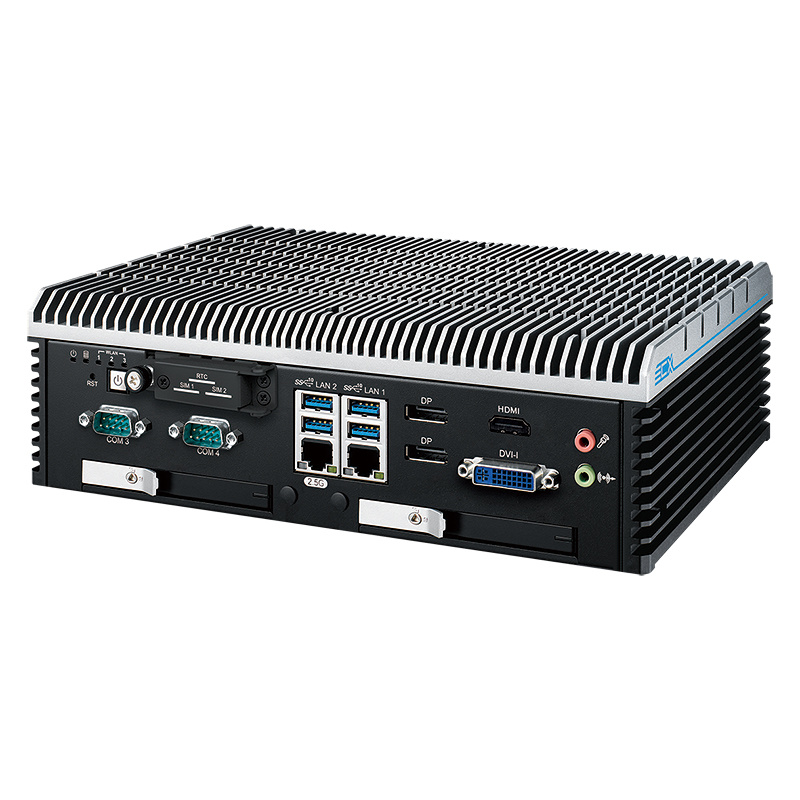

13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake/Alder Lake) Workstation-grade Fanless Embedded System with compact Hailo-8™ AI accelerator, max 5 2.5G LAN with 4 PoE+, 4 Front-access M.2 SSD Tray, DC 9V to 50V, High Performance, Rugged, -40°C to 65°C Extended Temperature.
Main Features
- Workstation-grade Platform : 13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S/Alder Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Intel® UHD Graphics 770 driven by Intel® Xe Architecture, with max 94% graphics performance and 181% GPU image classification inference performance enhanced
- Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W

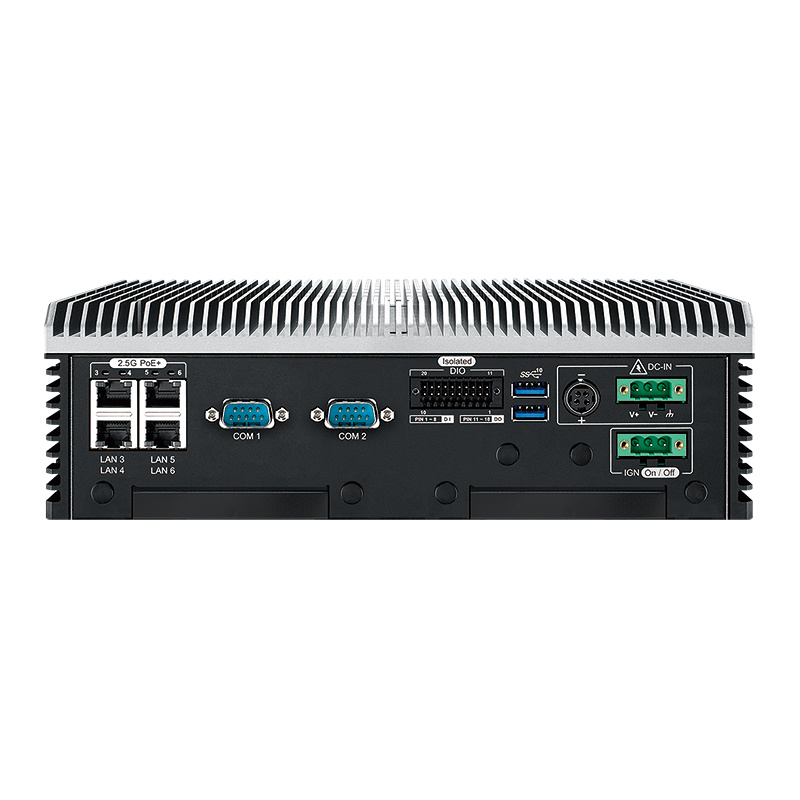

- 5 Independent 2.5G LAN with 4 IEEE 802.3at PoE+

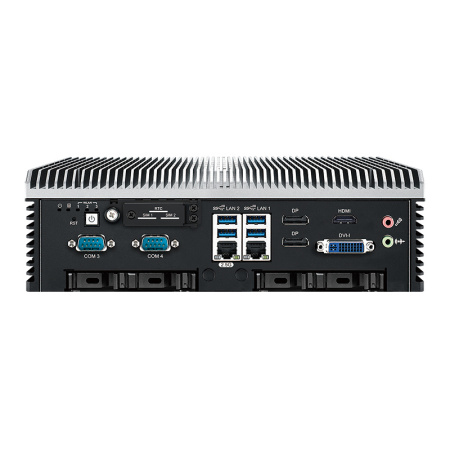

- 4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2
- DC 9V to 50V Power Input, Software Ignition Control
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
Specifications
| System |
| Processor | 24-core 13th Gen Intel® Core? i9/i7/i5/i3 Processor (Raptor Lake-S)
16-core 12th Gen Intel® Core? i9/i7/i5/i3 Processor (Alder Lake-S)
|
| Chipset | Intel® R680E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 3200MHz SO-DIMM, up to 64GB |
| OS | Windows 10, Linux |
| AI Accelerator |
| Processor | Hailo-8? AI Processor, up to 26 TOPS |
| Framework | TensorFlow, ONNX |
| I/O Interface |
| Serial | Up to 4 COM RS-232/422/485 |
| USB | 6 USB 3.2 Gen 2 |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Sockets |
| RTC Battery | Front-access RTC Battery |
| Expansion |
| Mini PCIe | 1 Mini PCIe Socket for PCIe/USB/SIM Card/Optional mSATA |
| M.2 | - 1 M.2 Key B Socket (3042/3052, SATA/USB 3(Default)/USB 2)- 1 M.2 Key E Socket (2230, PCIe x2/USB) |
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics |
| Graphics Processor | Intel® UHD Graphics 770 driven by Intel® Xe Architecture |
| Interface | 4 independent displays :- 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @60Hz- 1 DVI-I : Up to 1920x 1080@60Hz- 1 HDMI : Up to 1920×1080 @ 60Hz |
| Storage |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device | - Front-access 2.5" SSD/HDD Tray- 4 Front-access M.2 Key M SSD Tray(ECX-3000 PoES AI) |
| Audio |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet |
| LAN 1 | Intel® I219LM GigE LAN |
| LAN 2 | Intel® I2262.5GigE LAN supports TSN |
| 2.5G PoE |
| LAN 3 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 4 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 5 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 6 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| Power |
| Power Input | DC 9V to 50V |
| Power Interface | - 3-pin Terminal Block : V+, V-, Frame Ground- 4-pin Mini-DIN |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Others |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical |
| Dimension | 260.0mm x 175.0mm x 79.0mm (10.24" x 6.89" x 3.11") |
| Weight | 3.8 kg (8.38 lb) |
| Mounting | - Wallmount by mounting bracket- DIN Rail Mount (Optional)- 2U Rackmount (Optional) |
| Environment |
| Operating Temperature | 35W TDP CPU:-40°C to 65°C (-40°F to 149°F), Fanless65W TDP CPU :-40°C to 45°C (-40°F to 113°F), FanlessECX-3000-PoES AI :-40°C to 45°C (-40°F to 113°F), Fanless |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @65°C |
| Shock | - IEC 60068-2-27-SSD : 50G @wallmount, Half-sine, 11ms |
| Vibration | - IEC 60068-2-64-SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
