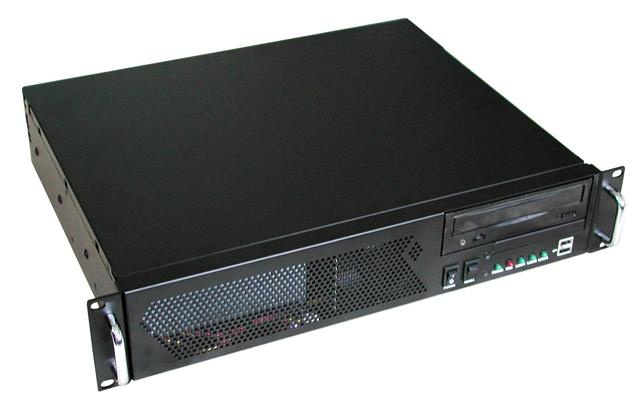

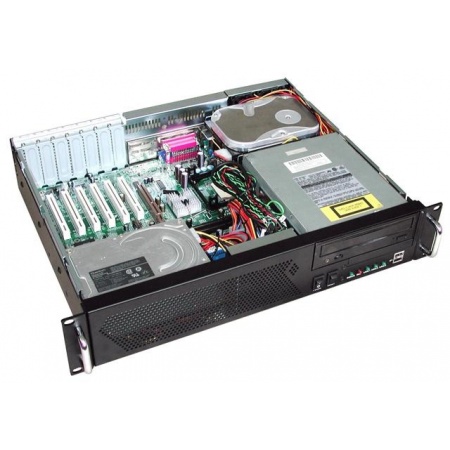

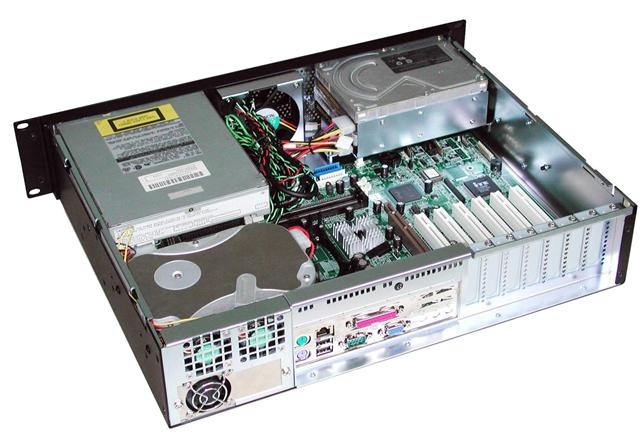

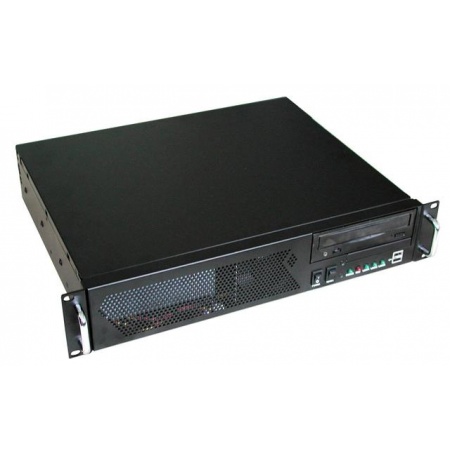

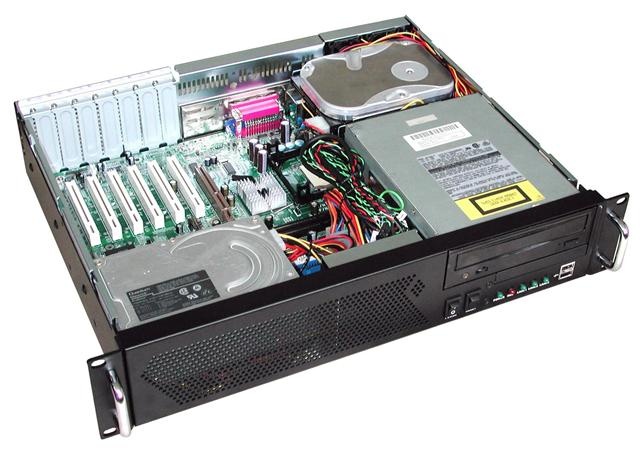

2U Short Rackmount Chassis Supports ATX M.B. 12"x 9.6" 1 x5.25" & Slim FDD& 3x3.5" Depth 357mm
Main Features
| Model: | GHI-252 |
| Max. Board Size: | ATX (12" x 9.6") |
| System Board Type: | Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon |
Specifications
| Standard: | EIA RS-310C 19" Rackmount Standard |
| Construction: | Heavy Duty Cold Rolled Electroplated Steel |
| Color: | Black (Standard), Beige or Custom |
| Drive Bays: | 1x 5.25" & 1x Slim FDD & 3x 3.5" HDD |
| Power Supply: | 1U Single up to 300W ATX P/S (Rear Installation) Max. Depth 205mm |
| Cooling Units: | 1x (80mm = 42.5CFM ea.) & 2x (40 x 20mm = 7CFM ea) Fans |
| Expansion Slot: | 2 or 3x Horizontal ISA/PCI/AGP Option Slots(GHI-252H) or 7x Low Profile PCI Slots (GHI-252V) |
| Connector Port (front): | 2x USB Ports |
| Indicators: | |
| Buttons: | Power ON/OFF Momentary(Square), System Reset |
| Crossbar: | |
| Thermal Card: | NA |
| Front Door(s): | NA |
| Air Filter: | |
| Dimensions(W x H x D): | 483 x 88 x 357mm (19" x 3.5" x 14.1") |
| Weight: | 9.0kgs / 19.8lbs |
| Cu. ft.: | 2 |
| Carton Size: | 57 x 20.3 x 50 (22.4" x 8" x 19.7") |
| Humidity: | 5% - 95% Non-condensing |
| Product Applications: | |
