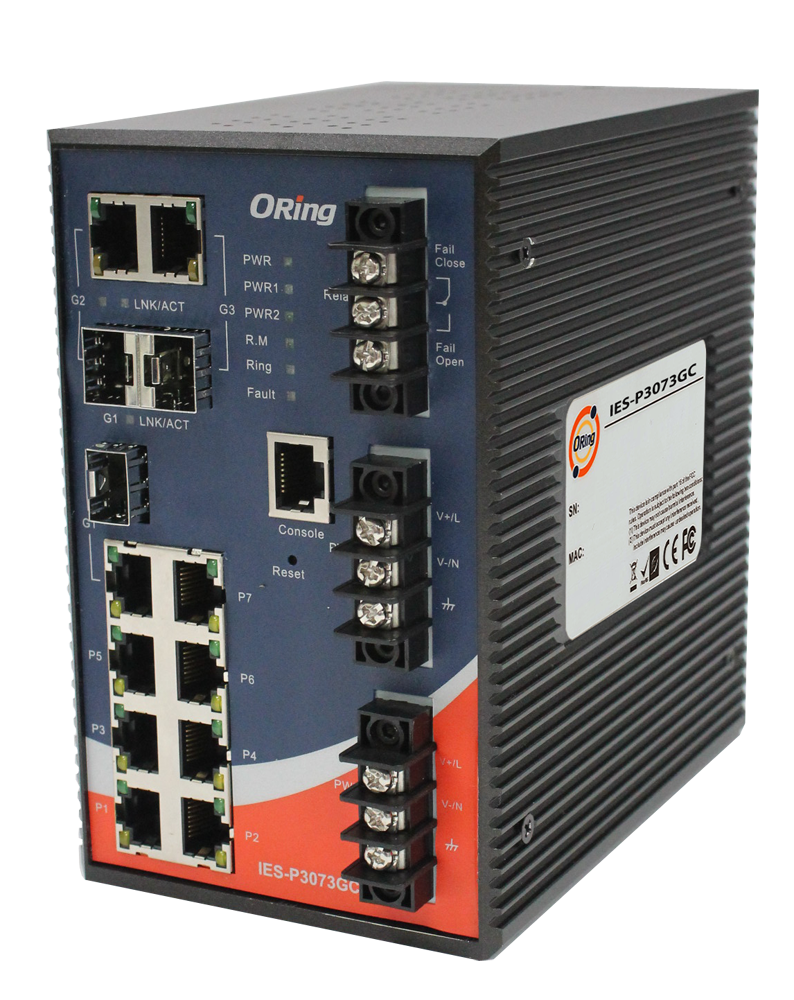

IEC 61850-3 10-port managed Ethernet switch with 7x10/100Base-T(X) and 3xGigabit combo ports, SFP socket
Main Features
- Designed for power substation/Railway application and fully compliant with the requirement of IEC 61850-3 and IEEE 1613
- Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
- Open-Ring supports the other vendor's ring technology in open architecture
- STP/RSTP/MSTP supported
- Supports PTP Client (Precision Time Protocol) clock synchronization
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Port Trunking for easy of bandwidth management
- SNMP v1/v2c/v3 support for secured network management
- RMON for traffic monitoring
- Supports DDM (Digital Diagnostic Monitoring) function
- Event notification through Syslog, Email, SNMP trap, and Relay Output
- Port lock to prevent access from unauthorized MAC address
- Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, and Console (CLI)
- Supports 3 Gigabit combo ports
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
- Supports LLDP Protocol
Overview
IES-P3073GC-HV is the IEC 61850-3 managed Redundant Ring Ethernet switch with 7x10/100Base-T(X) and 3xGigabit combo ports. This switch is designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. Besides, it's specially designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain, MRP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Open-Ring technology which can applied for other vendor's proprietary ring is also supported at IES-P3073GC-HV. O-Chain is the revolutionary network redundancy technology that provides the add-on network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain provides ease-of-use while maximizing fault-recovery swiftness, flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. All function of IES-P3073GC-HV can be managed centralized and convenient by a powerful windows utility — Open-Vision. IES-P3073GC-HV supports new DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electrical voltage, current and temperature. In addition, the wide operating temperature range from -40 to 85oC can satisfy most of operating environment. Therefore, these switches are one of the most reliable choices for highly-managed Fiber Ethernet application.
Specifications
| ORing Switch Model | IES-P3073GC-HV |
| Physical Ports | |
| Gigabit combo Port with 10/100/1000Base-T(X) and 100/1000Base-X SFP Port | 3 |
| 10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX | 7 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3ad for LACP (Link Aggregation Control Protocol )
IEEE 802.1D for STP (Spanning Tree Protocol)
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) |
| MAC Table | 8192 MAC addresses |
| Priority Queues | 4 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency : 7 μs
Switching bandwidth : 7.4Gbps
Max. Number of Available VLANs : 4096
IGMP multicast groups : 1024
Port rate limiting : User Define |
| Security Features | Enable/disable ports MAC based port security
Port based network access control (802.1x)
VLAN (802.1Q ) to segregate and secure network traffic
Supports Q-in-Q VLAN for performance & security to expand the VLAN space
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication and access security |
| Software Features | STP/RSTP/MSTP (IEEE 802.1D/w/s)
Redundant Ring (O-Ring) with recovery time less than 20ms over 250
TOS/Diffserv supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN tagging and GVRP supported
IGMP Snooping for multicast filtering
Port configuration, status, statistics, monitoring, security
SNTP for synchronizing of clocks over network
Support PTP Client (Precision Time Protocol) clock synchronization
DHCP Server / Client support
Port Trunk support
MVR (Multicast VLAN Registration) support |
| Network Redundancy | O-Ring
Open-Ring
STP
RSTP
MSTP |
| Warning / Monitoring System | Relay output for fault event alarming
Syslog server / client to record and view events Include
SMTP for event warning notification via email
Event selection support |
| RS-232 Serial Console Port | RS-232 in RJ45 connector with console cable. 9600bps, 8, N, 1 |
| LED Indicators | |
| Power Indicator | Green : Power LED x 3 |
| R.M. Indicator | Green : Indicates that the system is operating in O-Ring Master mode |
| Ring Indicator | Green : Indicates that the system is operating in O-Ring mode |
| Fault Indicator | Amber : Indicates unexpected event occurred |
| 10/100Base-T(X) RJ45 Port Indicator | Green for port Link/Act. Amber for Duplex/Collision |
| 10/100/1000Base-T(X) RJ45 Port Indicator | Green for port Link/Act. Amber for 100Mbps indicator |
| 100/1000Base-X SFP Port Indicator | Green for port Link/Act. |
| Fault Contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Redundant Input Power | Dual DC inputs. 12~48VDC on 6-pin terminal block |
| Power Consumption (Typ.) | 12 Watts |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present on terminal block |
| Physical Characteristics | |
| Enclosure | IP-30 |
| Dimensions (W x D x H) | 96.4(W) x 145.5(D) x 154(H) mm (3.8x5.73x6.06 inch) |
| Weight (g) | 1935g |
| Environmental | |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operating Humidity | 5% to 95% Non-condensing |
| Regulatory Approvals | |
| Power Automation | IEC 61850-3, IEEE 1613 |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | 5 years |
Ordering Information
| Model No. | Description |
| IES-P3073GC-HV | Industrial IEC 61850-3 10-port managed Ethernet Switch with 7x10/100Base-T(X) and 3xGigabit combo ports, SFP socket |
