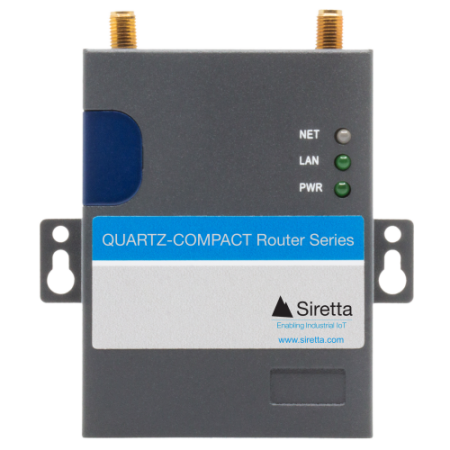

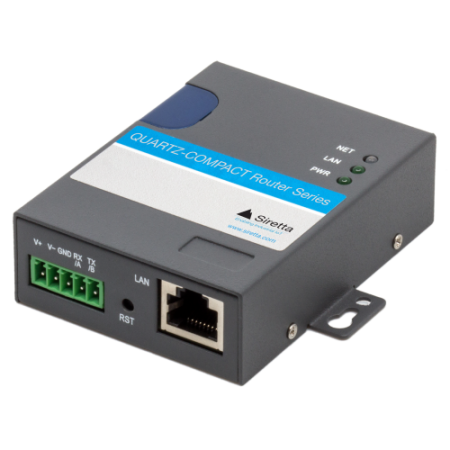

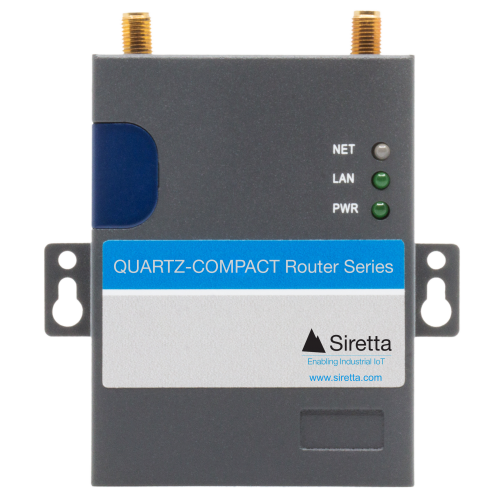

The QUARTZ-COMPACT-LTE router is an ultra compact, high speed industrial router designed for transferring large amounts of data via the cellular network. The QUARTZ-COMPACT-LTE fast data transfer capability reaches up to 150Mbps download and up to 50Mbps upload speed. It also has fallback to 3G communication should 4G/LTE be unavailable. It is well suited for IoT/mobile broadband applications, offering reliable, secure wireless connectivity.

The QUARTZ-COMPACT-LTE router has a robust design, in an ultra compact metal enclosure, making it ideal for deployment in industrial embedded applications where space is at a premium.

Cellular coverage is designed to match European frequencies. The QUARTZ-COMPACT-LTE software means VPN security is supported, allowing the router to be used in commercial as well as industrial applications.

The QUARTZ-COMPACT-LTE Compact router meets the needs for management of remote communication and therefore has applications in renewable energy, security, digital signage, transport, street furniture, traffic control, parking systems, environmental monitoring and many other IoT/mobile broadband applications.

The QUARTZ-COMPACT-LTE router comes equipped with a single SIM slot, single 10/100 ethernet LAN port and a serial port. Setting up the QUARTZ-COMPACT router is quick and easy – simply insert your 4G SIM card and connect the antennas. Power up the router and connect to the internet by entering the correct APN settings in the web interface. The router will then connect and provide high speed 4G mobile broadband.

European 4G / LTE bands
High speed data via LTE network
Strong resistance to electromagnetic interference
Built-in watch dog, multi-link detection
Ultra compact industrial design
Excellent temperature endurance
VPN: PPTP, L2TP, GRE, IPSec
1 x LAN, 1 x Serial port

Specifications

UMTS Network Coverage
B1 (2100MHz)
B5 (850MHz)
B8 (900MHz)

LTE Network Coverage
B1 (2100MHz)
B3 (1800MHz)
B5 (850MHz)
B7 (2600MHz)
B8 (900MHz)
B20 (800MHz)

Mechanical Specifications
Operating temperature range: -30 to 70°C
Storage temperature range: -40 to 85°C
Relative humidity: <95% (non-condensing)

Physical Interfaces

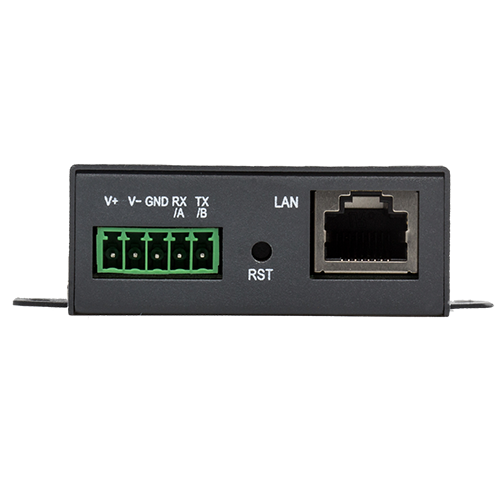

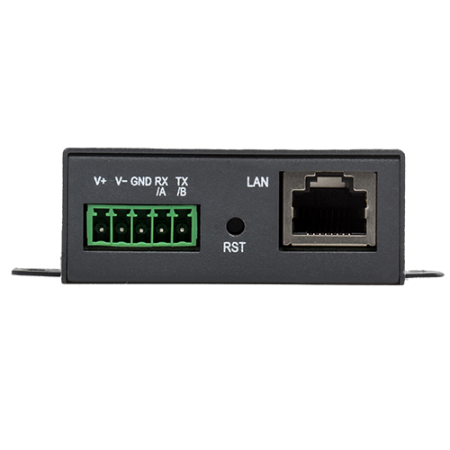

1 × 10/100Mb LAN interface
1 × RS-232 console port

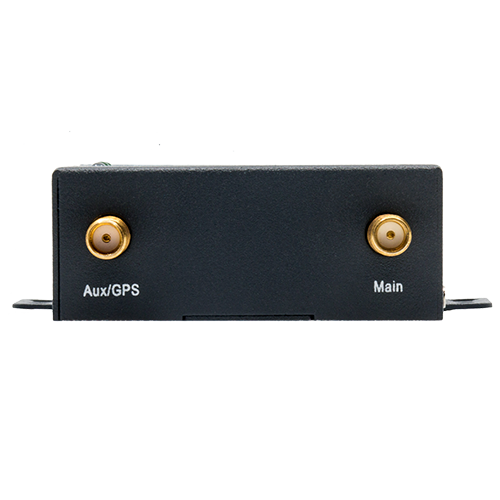

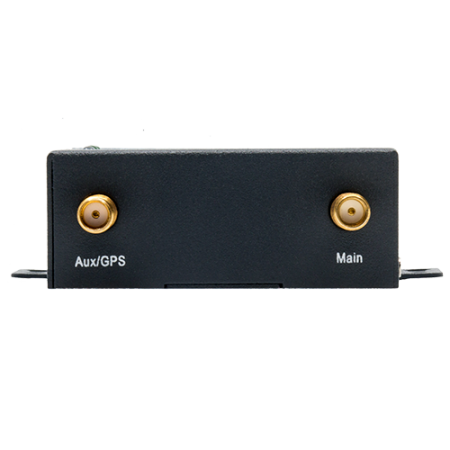

2 × SMA antenna interface
1 × Standard mini SIM interface (2FF)
1 × Standard DC power interface

Power and Consumption
Idle: 165mA @ +12V DC
Online without WiFi: 195mA @ +12V DC
Online with Wifi 235mA @ +12V DC
Power Supply: 5V – 32V DC

Certification
CE
RoHS
CCC
