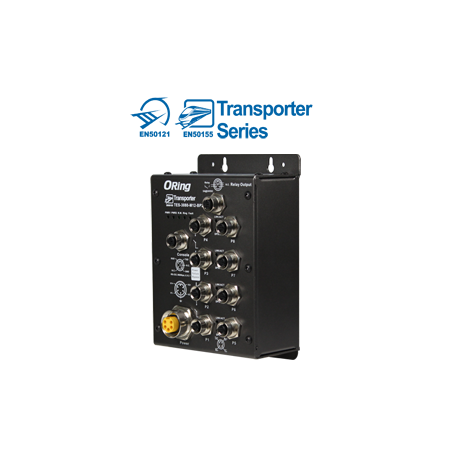

TES-3080-M12-BP2

EN50155 8-port managed Ethernet switch with 8x10/100Base-T(X), M12 connector and 2xbypass included

Main Features

• Leading EN50155-compliant Ethernet switch for rolling stock application
• World's fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
• Open-Ring support the other vendor's ring technology in open architecture
• STP/RSTP/MSTP supported
• Support PTP Client (Precision Time Protocol) clock synchronization
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Port Trunking for easy of bandwidth management
• SNMP v1/v2c/v3 support for secured network management
• RMON for traffic monitoring
• Support LLDP protocol
• Provided two relay bypass function ports
• Port lock to prevent access from unauthorized MAC address
• Event notification through Syslog, Email, SNMP trap, and Relay Output
• Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, Console (CLI)
• Ultra-rugged enclosure M12 connector for toughest industrial usages
• Wall mounting enabled

Overview

ORing´s TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TES-3080-M12-BP2 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. It is specifically designed for the toughest industrial environments. TES-3080-M12-BP2 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-1080-M12-BP2 included dual bypass ports, These bypass ports protect the network from failures and Network maintenance by ensuring network integrity during power loss. Each of these bypass ports includes Network ports and Monitor ports. The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-link local networking device. When the power is on, the operating mode of the Bypass ports is set to Normal , and the local networking device is connected with main-network. When power failure occurs, the Bypass ports is swiftly set to bypass mode to isolate the main-network from the local networking device. TES-3080-M12-BP2 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
