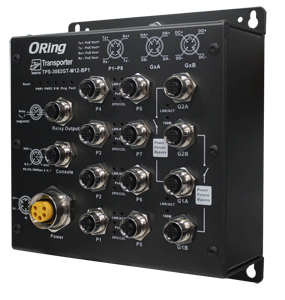

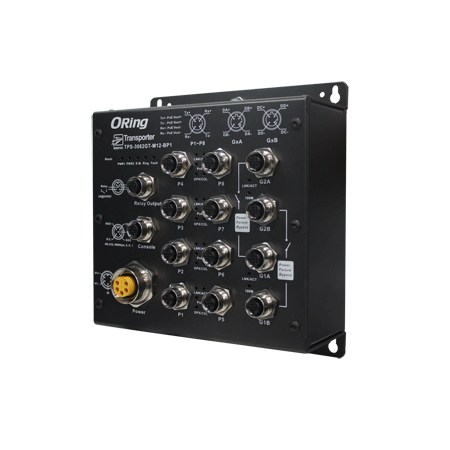

TPS-3082GT-M12-BP1

10-port managed EN50155 PoE Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X), M12 connector and 1xbypass included

Main Features

• Leading EN50155-compliant Ethernet switch for rolling stock application
• 8 ports P.S.E. fully compliant with IEEE802.3af standard, provide up to 15.4 Watts per port
• World’s fastest Redundant Ethernet Ring: O-Ring (recovery time < 10ms over 250 units of connection)
• Open-Ring support the other vendor’s ring technology in open architecture
• STP/RSTP/MSTP supported
• Support PTP Client (Precision Time Protocol) clock synchronization
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Port Trunking for easy of bandwidth management
• SNMP v1/v2c/v3 support for secured network management
• RMON for traffic monitoring
• Support VLAN and LLDP protocol
• DHCP assign each Equipment IP by each Port
• Provided Relay bypass function with two gigabit ports
• Port lock to prevent access from unauthorized MAC address
• Event notification through Syslog, Email, SNMP trap, and Relay Output
• Windows utility (Open-Vision) support centralized management and configurable by Web-based ,Telnet, Console (CLI)
• M12 connectors to guarantee reliable operation against environmental disturbances
• Wall mounting enabled

Overview

ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TPS-3082GT-M12-BP1 is a managed PoE Redundant Ring Ethernet switch with 8x10/100Base-T(X) P.S.E. and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TPS-3082GT-M12-BP1 also supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. Each TPS-3082GT-M12-BP1 switch has 8X10/100Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. TPS-3082GT-M12-BP1 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TPS-3082GT-M12-BP1 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
